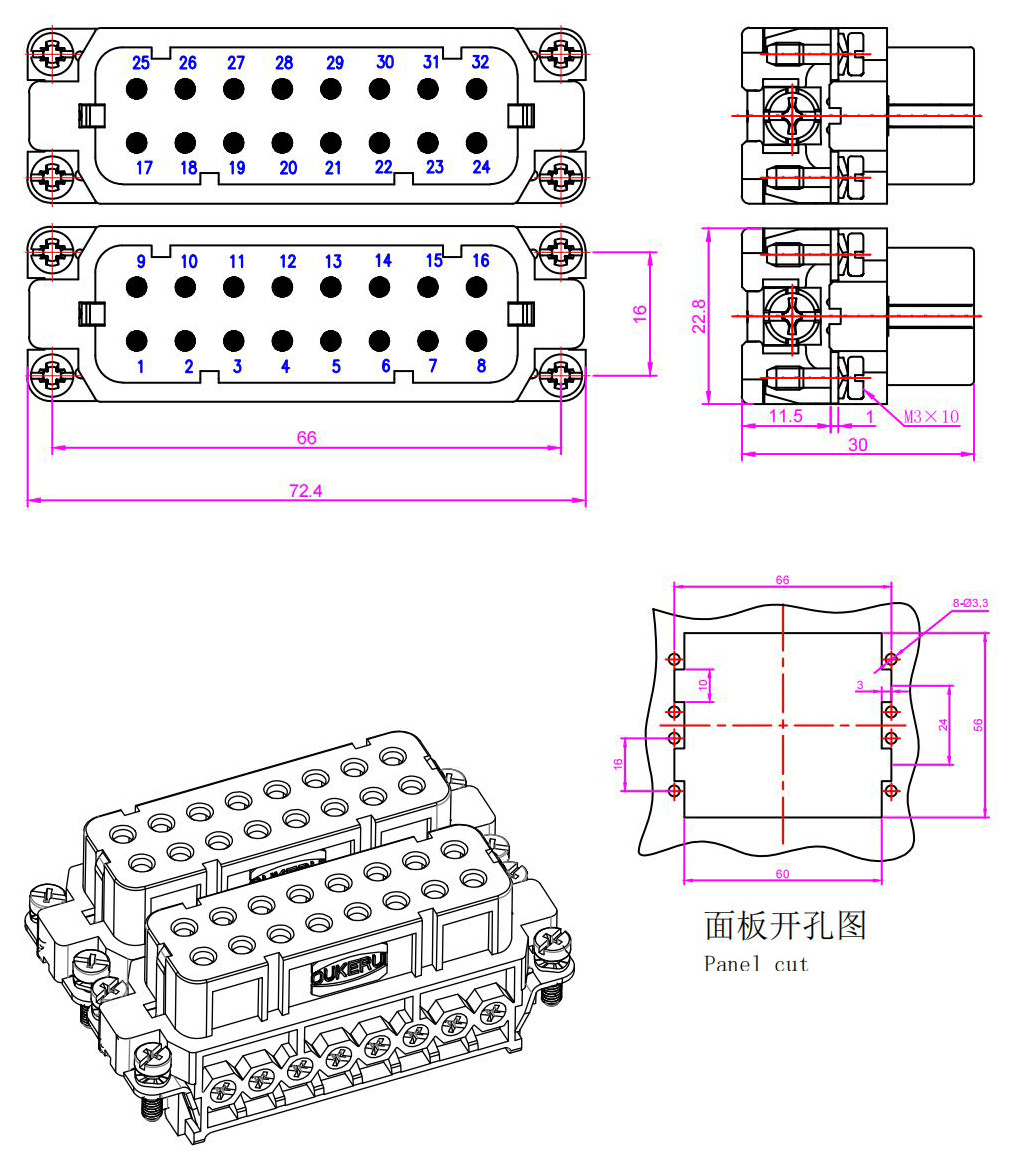

HZW-HA-032-F(1-16)(17-32)

Part Number：80210032180

INQUIRY

Product description

Specifications:

Inserts:

Number of contacts: 10+PE

Rated current： 16A

Rated voltage： 250V

Rated impulse voltage： 4KV

Pollution degree： 3

Rated voltage acc.to UL/CSA: 600V

Insulation resistance: ≥10¹⁰ Ω

Material： Polycarbonate

Limiting temperatures： -40℃~+125℃

Flammability acc.to(UL94): V0

Mechanical working life -mating cycles: ≥500

Contacts:

Terminal: screw terminal

Material: Brass

Surfac: hard-silver plated

Contact resistance: ≤1mΩ Crimp terminal

Wire gauge--mm²: 1.0~2.5mm²

Wire gauge--AWG: 18-14

Tightening/Test torque：0.5N ·m
