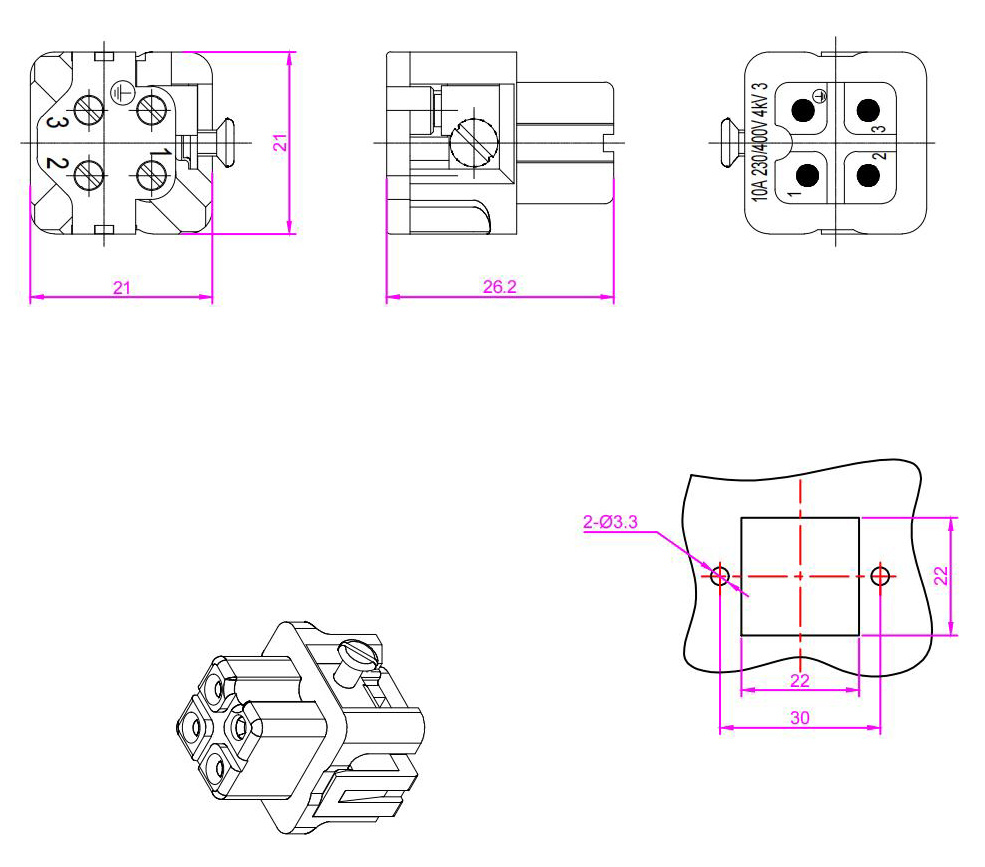

HZW-HA-003-F Connector Insert

Specifications:

Inserts:

Number of contacts: 3+PE

Rated current： 10A

Rated voltage： 230/400V

Rated impulse voltage： 4KV

Pollution degree： 3

Rated voltage acc.to UL/CSA: 600V

Insulation resistance:  ≥10¹⁰ Ω

Material： Polycarbonate

Limiting temperatures：  -40℃~+125℃

Flammability acc.to(UL94):  V0

Mechanical working life -mating cycles:  ≥500

Contacts:

Terminal: screw terminal

Material:  Brass

Surfac:  hard-silver plated

Contact resistance:  ≤1mΩ Crimp terminal

Wire gauge--mm²:   1.0~2.5mm²

Wire gauge--AWG:   18-14

Tightening/Test torque：0.25N ·m

Connector Insert is a core component used to establish stable and reliable connections in various electronic and electrical systems. It acts as a bridge between connectors and target devices, ensuring the smooth transmission of signals and power, which is indispensable for the normal operation of equipment in multiple industries.
One of the outstanding advantages of this Connector Insert is its excellent electrical conductivity. Made of high-purity copper or copper alloy materials, it effectively reduces electrical resistance, minimizing signal loss even during long-term use. This feature is crucial for high-precision electronic devices such as medical equipment and industrial control systems, as it guarantees the accuracy and stability of data transmission.
Moreover, the Connector Insert has strong environmental resistance. It can withstand a wide temperature range from -40°C to 120°C, and its surface is treated with anti-corrosion plating, which makes it resistant to humidity, dust and chemical erosion. This allows the product to work stably in harsh environments like automotive engine compartments, outdoor communication equipment and industrial workshops, significantly extending its service life.
Broad compatibility is another key feature of this Connector Insert. It is designed to match most standard connector models, including USB, HDMI, D-sub and industrial circular connectors. This compatibility eliminates the need for customized components, reducing replacement costs for users and simplifying inventory management for enterprises. Whether used in consumer electronics such as smartphones and laptops or industrial equipment, it can be easily integrated into existing systems.
In addition, the Connector Insert is designed for high installation efficiency. Its compact structure and precise size enable quick insertion and firm locking, reducing assembly time. Even for workers with basic operation skills, the installation process is simple and convenient, lowering the risk of errors and improving overall production efficiency.
