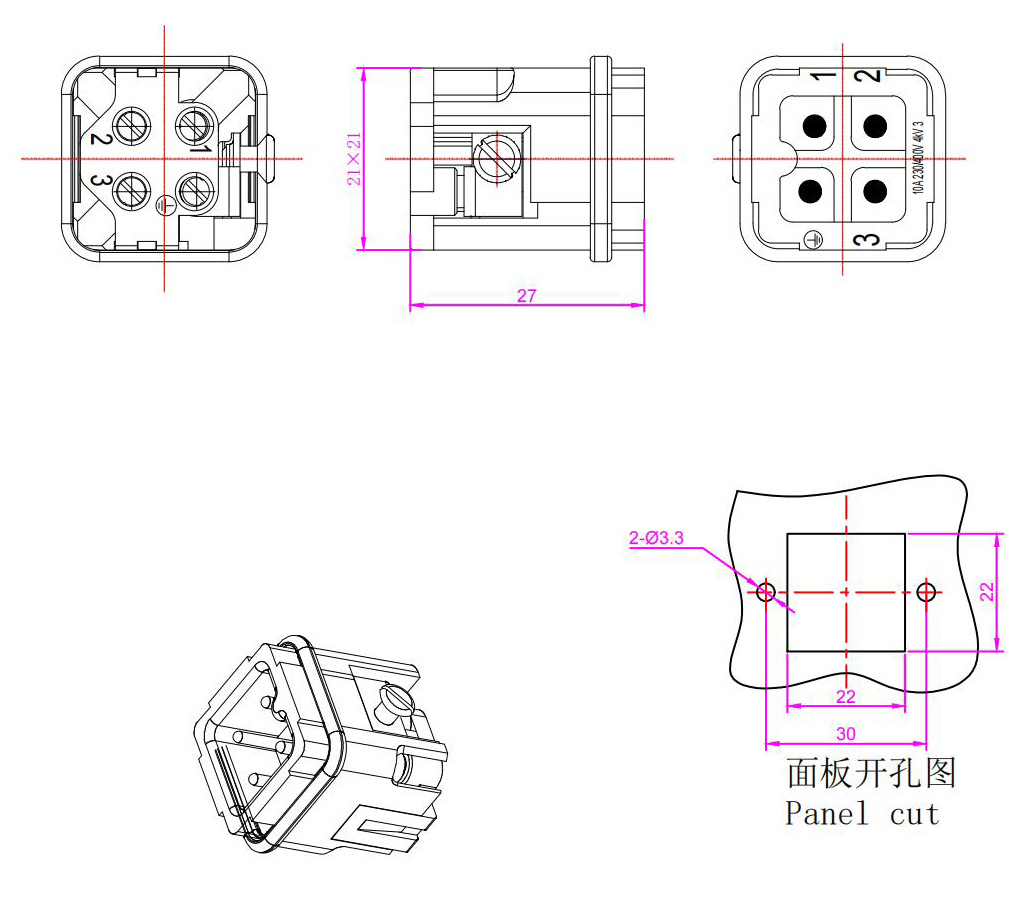

HZW-HA-003-M Insert Connector

Specifications:

Inserts:

Number of contacts: 3+PE

Rated current： 10A

Rated voltage： 230/400V

Rated impulse voltage： 4KV

Pollution degree： 3

Rated voltage acc.to UL/CSA: 600V

Insulation resistance:  ≥10¹⁰ Ω

Material： Polycarbonate

Limiting temperatures：  -40℃~+125℃

Flammability acc.to(UL94):  V0

Mechanical working life -mating cycles:  ≥500

Contacts:

Terminal: screw terminal

Material:  Brass

Surfac:  hard-silver plated

Contact resistance:  ≤1mΩ Crimp terminal

Wire gauge--mm²:   1.0~2.5mm²

Wire gauge--AWG:   18-14

Tightening/Test torque：0.25N ·m

The Insert Connector is an essential component designed for high-performance electrical connections. It is widely used in various applications that require reliable, safe, and efficient connectivity. This connector is built to meet stringent industry standards and is perfect for use in both commercial and industrial settings.

One of the key features of the Insert Connector is its robust specifications. The number of contacts includes three contacts plus a protective earth (PE) terminal, which ensures proper grounding and safe operation. The rated current for this connector is 10A, while the rated voltage stands at 230/400V, making it suitable for a wide range of voltage systems. The rated impulse voltage is 4KV, offering enhanced protection against voltage surges and spikes. It is also designed with a pollution degree of 3, which makes it ideal for use in environments that may have moderate contamination.

The material composition of the Insert Connector plays a crucial role in its durability and performance. It is made from high-quality polycarbonate, which provides excellent insulation properties and resistance to extreme temperatures. The connector can withstand temperatures ranging from -40℃ to +125℃, ensuring its functionality even in harsh environmental conditions. The connector is also UL94 V0 flame-retardant, adding an additional layer of safety in case of exposure to fire or high heat.

Another important feature of the Insert Connector is its mechanical working life, which includes over 500 mating cycles. This means that the connector can be used repeatedly without significant wear or degradation in performance, making it highly durable and reliable for long-term use.

In terms of contacts, the Insert Connector is equipped with high-quality brass terminals that are silver-plated for optimal conductivity. The contact resistance is minimal, with a maximum of ≤1mΩ, ensuring a low-resistance, high-performance connection. The connector supports crimp terminals, making it easy to install and secure the wires without the need for additional tools. The wire gauge range is between 1.0 and 2.5mm², or AWG 18-14, which covers a wide variety of wire sizes commonly used in electrical systems.

The screw terminal design provides a secure and stable connection, with a tightening/test torque of 0.25N·m to ensure that the connection remains firm and reliable during operation.
