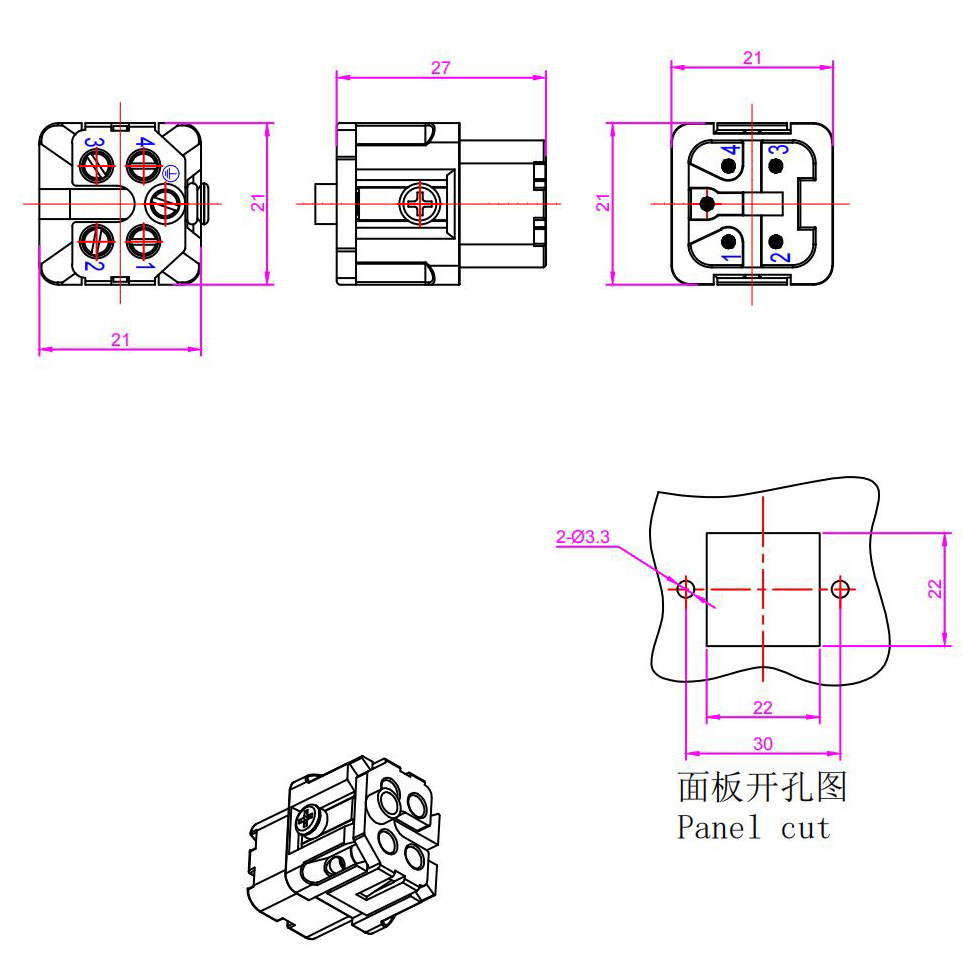

HZW-HA-004-F

Specifications:

Inserts:

Number of contacts: 4+PE

Rated current： 10A

Rated voltage： 230/400V

Rated impulse voltage： 4KV

Pollution degree： 3

Rated voltage acc.to UL/CSA: 600V

Insulation resistance:  ≥10¹⁰ Ω

Material： Polycarbonate

Limiting temperatures：  -40℃~+125℃

Flammability acc.to(UL94):  V0

Mechanical working life -mating cycles:  ≥500

Contacts:

Terminal: screw terminal

Material:  Brass

Surfac:  hard-silver plated

Contact resistance:  ≤1mΩ Crimp terminal

Wire gauge--mm²:   1.0~2.5mm²

Wire gauge--AWG:   18-14

Tightening/Test torque：0.25N ·m

Heavy Duty Connector Insert is a crucial component used in various industrial applications where reliable and durable connections are required. This insert is typically designed for use with heavy-duty connectors, providing a secure and stable connection for both power and signal transmission. The insert serves as a key part in ensuring that the connector can withstand extreme conditions such as high temperatures, vibrations, and environmental factors.

These inserts are made from high-quality materials, often engineered plastics or metal alloys, to ensure a long-lasting and robust performance. Depending on the specific needs of the application, the insert can be customized to fit various connector housings, ensuring compatibility with different systems. Heavy Duty Connector Inserts are often used in industries such as automotive, robotics, military, telecommunications, and manufacturing.

One of the main features of the Heavy Duty Connector Insert is its ability to facilitate quick and secure connections. It is designed to accommodate a wide range of pin configurations, including both male and female pins, to meet diverse connection requirements. This versatility makes it an essential component for modern electrical systems, where high performance and reliability are non-negotiable.

In addition to the superior material quality and design flexibility, the Heavy Duty Connector Insert also features advanced locking mechanisms. These mechanisms help prevent accidental disconnections, ensuring that the connectors stay securely in place even in harsh environments. Whether in industrial machinery, outdoor installations, or mission-critical systems, these inserts provide the peace of mind that connections will remain intact under stress.

The Heavy Duty Connector Insert is also engineered for easy installation and maintenance. Its simple design allows for quick assembly and disassembly, reducing downtime and improving productivity. Technicians and engineers can replace or service inserts without requiring special tools, making it a cost-effective solution for various industries.

Moreover, these inserts are designed with safety in mind. They are resistant to dust, water, and other contaminants, which can otherwise compromise the functionality of connectors. This makes them ideal for applications that require outdoor or rugged usage, such as construction sites or transportation systems.
